Gizmotchy® 10/11 Meter Beams
Number of
Elements
Boom
Length
Weight
DB Gain
Power
Multiplication
Front-to-Back
Separation
Turn Radius
Surface
Area
2
5 1/4 ft
9
12 DB
21X
23 DB
9 3/4 ft
2.8 Sq Ft
3
9'
12
12 DB
30X
25 DB
10 1/4 ft
4.2 Sq Ft
4
12 3/4'
16
15 DB
40X
28 DB
11 ft
5.6 Sq Ft
5
16 1/2'
20
18 DB
45X
31 DB
12 1/2 ft
7.0 Sq Ft
6
20 1/4'
24
20 DB
50X
34 DB
13 3/4 ft
8.4 Sq Ft
We recommend the use of a Gizmotchy® Universal Antenna Support Kit
for beams with 5 or more elements. The SK12 12' Support Kit and SK18 18'
Support Kit are available through your favorite Gizmotchy® reseller.


For information on Gizmotchy beams larger than 6 elements, please
contact us.
Gizmotchy® beams are made to build upon.
For example, you can choose to start out with a 3 element beam and then
you can increase your boom length, number of elements, DB gain, etc at
any point by adding one or more Gizmotchy® Power Boosters.

Each set of vertical/horizontal elements is counted as 1 element - so a "3 element"
Gizmotchy® beam actually features 9 elements
Gizmotchy®
Products are
Proudly Made
in the U.S.A.

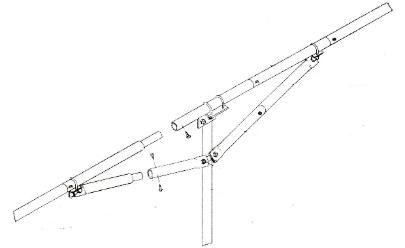

Gizmotchy® Universal Support Kit

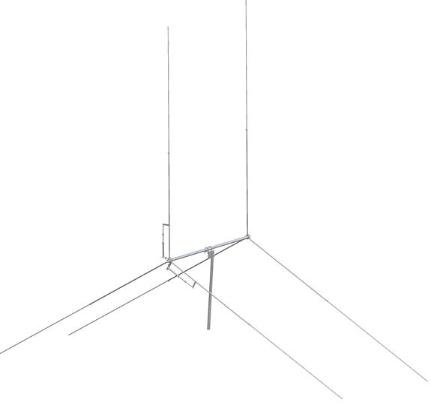

Gizmotchy® 2 Element Beam
